| Plaats van herkomst: | Sjanghai, China |
| Merknaam: | SHQN |
| Certificering: | ISO 9001 |
| Modelnummer: | SV-types Wattenstaafjes |
| Min. bestelaantal: | 500 stuks |
|---|---|
| Prijs: | 2.5-5 |
| Verpakking Details: | kartonnen verpakking |
| Levertijd: | 15 dagen |
| Betalingscondities: | L/C, T/T, Western Union |
| Levering vermogen: | 5000 stuks per maand |
| Maat: | 2 1/2 inch. | Materiaal: | Rubber+metalen kern |
|---|---|---|---|
| Beschikbaar: | sv-stijl | Milieu:: | olie, gas, gascondensat |
| Kleur: | ZWART | MOQ: | 500 STUKS |
| Levertijd: | 15 DAGEN | Steekproef: | Beschikbaar |
| OEM/ODM: | Beschikbaar | Sollicitatie: | Olieveld |
| Markeren: | SV Swab Cups 2 1/2 inch,Cups voor Hoge Zand Swabbing,Olieveld Swab Cups met garantie |
||

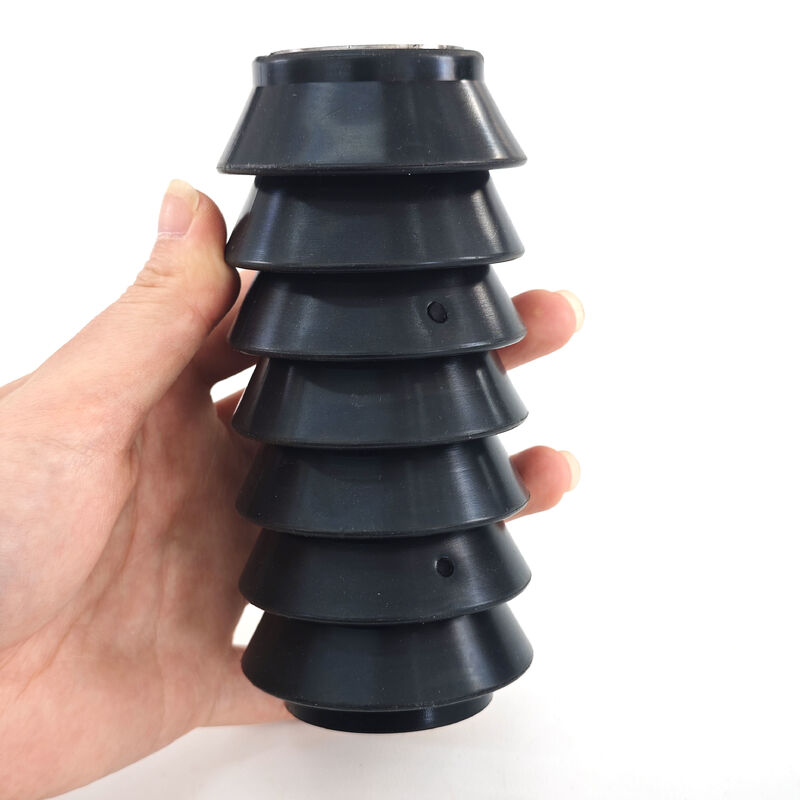

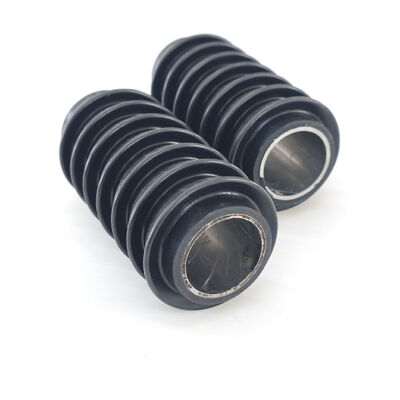

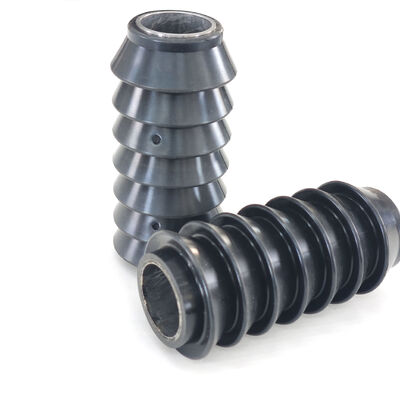

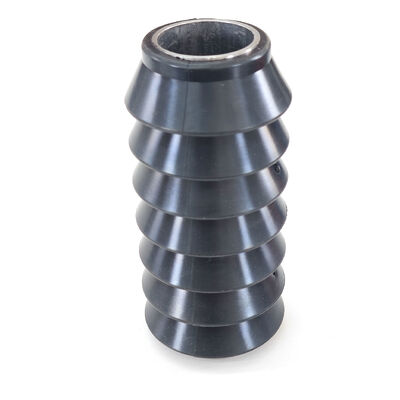

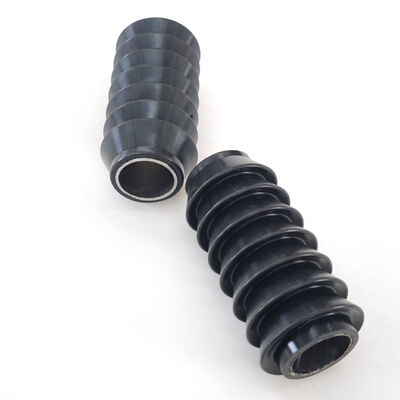

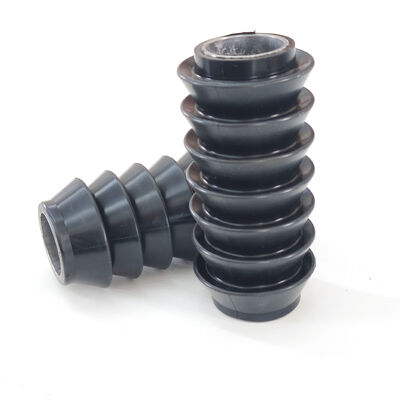

The 2.5 inch SV swab cup is a rubber-and-metal-core component for oilfield fluid recovery. Its flexible lip profile is a key selection feature for light-to-medium-load swabbing with sand-bearing fluids. Compare the lip geometry, core bore and seating dimensions with the existing assembly; include fluid composition, solids content and operating temperature when specifying the replacement.
| Product Type | SV Type Swab Cup |
| Nominal Size | 2 1/2 inch |
| Material Option | Confirm the rubber compound against fluid, temperature and service requirements |
| Application | Light to Medium Fluid Loads / Sand-laden Fluids |
| Compatibility | Mandrel fit checked against drawing or sample |
| Hardness | Specify required Shore A hardness with the inquiry |
Other Available types of Swab cups:
TA style: TA is a medium load Swab Cup built around a steel or aluminum bushing for use in most sizes of tubing or drill pipe. When under load, it will compress to form a solid rubber mass for maximum lifting capacity and minimum wear. Confirm the bushing material and rubber compound for the required fluid service. For frac fluids, include the fluid composition and operating conditions with the inquiry.
MV style: Shanghai Qinuo offers the popular Guiberson* profile MV Swab Cup in both nitrile and frac fluid rubber compound. The cup has either an aluminum or steel bushing with multiple upturned lips which allows it to pass through tight spots and control the amount of load. It is very efficient in fluid with suspended sand.
V style: Shanghai Qinuo carries the V Series Swab Cup in a light duty and heavy duty all rubber cup that is suited for use in fluids with high concentrations of suspended sand. The upturned lips pass easily through tight spots and will invert to dump excessive loads. The number of cups used will vary with conditions.
1. Flexible Lip Profile: Compare the ribs and sealing edges with the worn cup. Sand-bearing service calls for review of particle content, tubing condition and the required rubber compound.
2. Light-to-Medium-Load Selection: Provide the intended fluid load and the existing cup arrangement. Confirm orientation, spacing and seating before selecting the replacement assembly.
3. Compound and Hardness: Match the rubber requirement to the service fluid and temperature. Include abrasion requirements and any hardness specification from the equipment drawing.
4. Bore and Installation Fit: Check actual tubing internal diameter, cup sealing diameter and mandrel dimensions. Report restrictions, scale or pitting that could affect selection.
5. Replacement Identification: Send side and end views of the removed cup, overall height, core opening and seating dimensions. These details distinguish the required SV configuration from other swab-cup profiles.
Question: What makes the SV cup the best for high sand ratios?
Answer: Flexible lip geometry is one selection factor for sand-bearing fluid. Review the sand concentration, wear pattern and compound requirement together; operating conditions determine the suitable assembly.
Question: Will these cups fit my standard 2.5 inch mandrel?
Answer: Check the core bore, shoulder and seating dimensions against your mandrel drawing or measured sample. Nominal 2.5 inch size alone does not establish fit.
