Royal Way 2-Inch Figure 1502 Weco / FMC-Type Plug Valve Elastomer Repair Set

Repeat Plug Valve Repair Orders: Match the Kit Code and Drawing Revision

For a repeat order of this 2-inch Figure 1502 plug valve elastomer set, identify the exact Weco / FMC-type valve and the previously approved parts list. A previous purchase description or nominal size alone is insufficient when the valve design or component specification has changed.

Keep separate kit codes for different valve models or revisions, even when both are described as 2-inch Figure 1502. Confirm the complete valve rating and repair procedure with the equipment documentation. This elastomer set has no independent pressure rating. Sour-gas and rapid gas decompression suitability require compound-specific qualification.

2-inch Figure 1502 repair set enquiries; Figure 602 and 3-inch variants require separate valve drawings

Oilfield Plug Valve Seals products data sheet

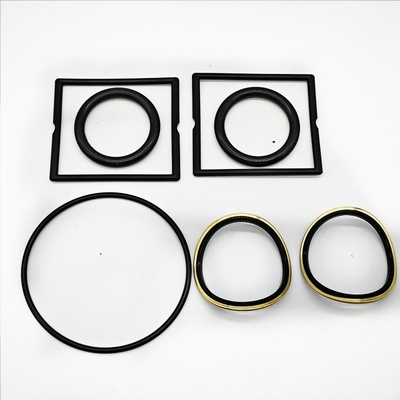

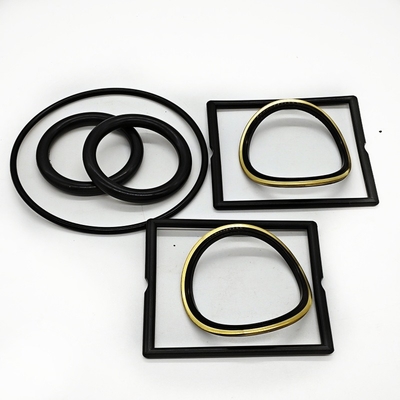

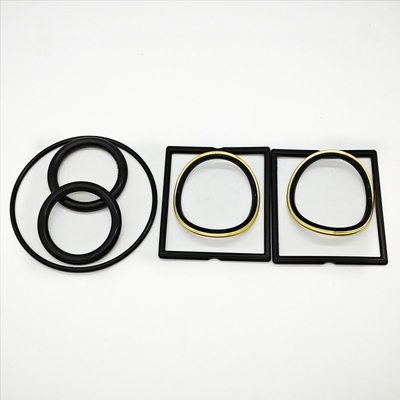

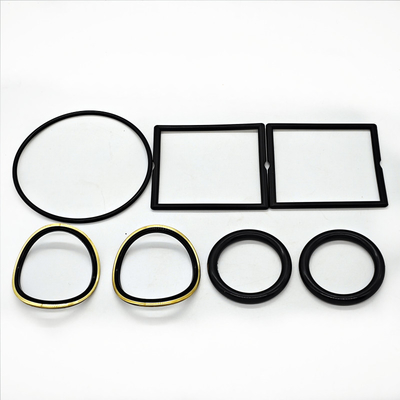

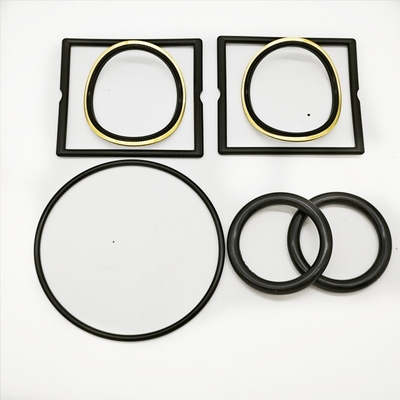

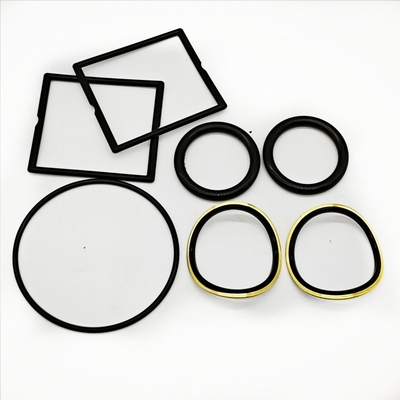

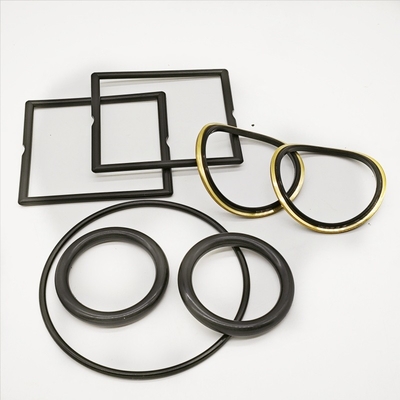

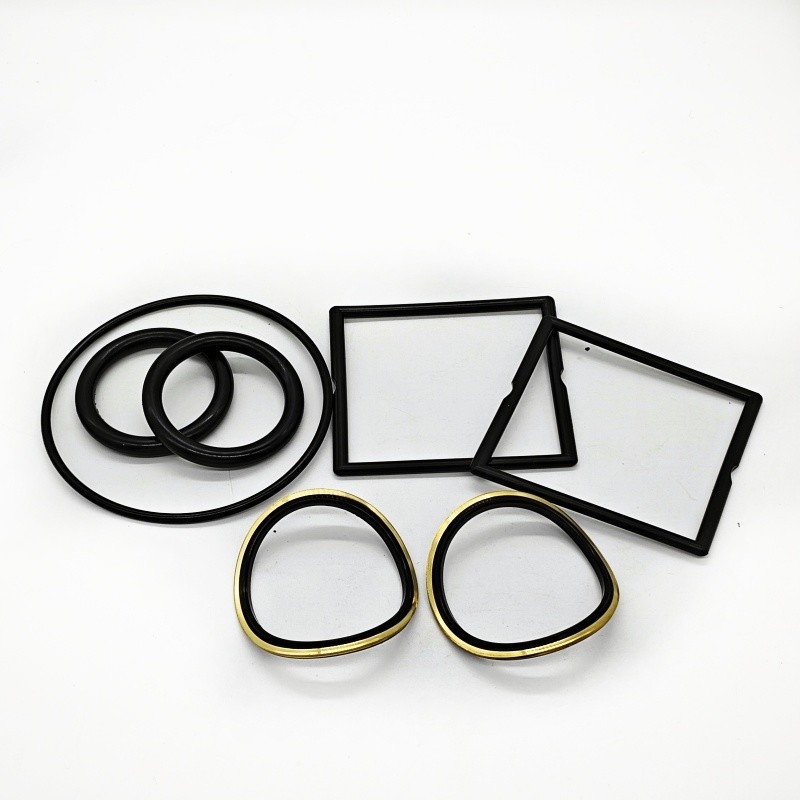

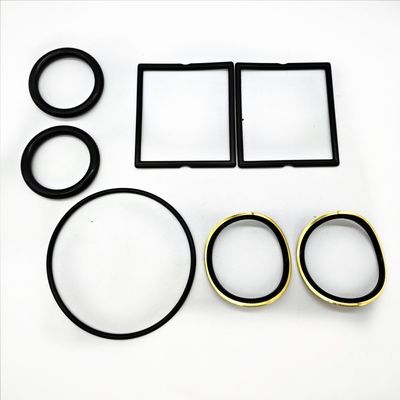

Plug valve repair component pictures for reference — confirm the supplied set against the drawing:

Other products from us:

Hammer union seals:

  Hammer Union Seals are used in hammer union-style pipe connections to establish flow lines and prevent leakage.

  Available size : 1", 1.5'',2", 3", 4" and 5"

Related hammer union seal materials include NBR, HNBR, FKM and PTFE. Select the exact grade and backup construction for the mating union, fluid and temperature. HNBR alone does not establish sour-gas suitability; compound-specific qualification is required.

  Related Hammer Union Seal References — Confirm Drawing and Availability:

Swab cups:

Related swab cups are ordered separately from this Royal Way 2-inch Figure 1502 plug valve repair set. During fluid recovery, the selected cup seals against the tubing or casing bore. Specify the cup profile, tubing inside diameter, mandrel bore, core arrangement and compound for the actual fluid exposure and permitted fluid-column load. Check cup and mandrel operating limits before repeating a previous configuration.

MV Style, TA style and V styles.

Rubber o rings or kits

For related AS568 O-rings, specify the dash number, compound and hardness; confirm tooling and availability for the requested size.

Color, hardness, packing all can be custom making.

Other oil field rubber and plastic fittings:

Rubber packer elements

Thread protectors

Flow tubes

Other parts by drawing.

Shanghai Qinuo Industry Co. Ltd

Shanghai Qinuo Industry Co. Ltd supplies rubber, plastic and machined parts to agreed drawings and application requirements. Our ISO 9001 quality management supports specification review and inspection. For a plug valve repair set, send the valve reference, parts list, component dimensions and service conditions so the materials and fit can be confirmed.
